SMC fiberglass material electric meter box cover Watt-meter Box

Short Description:

Product Detail

Product Tags

Product description

SMC fiberglass meter box is a kind of electrical equipment, usually used to install and protect electric energy measuring instruments (meters) and related electrical equipment. SMC stands for Sheet Molding Compound, which is a composite material composed of glass fiber, resin and filler. This material has the characteristics of corrosion resistance, high temperature resistance, and good weather resistance, and is very suitable for manufacturing electrical equipment and boxes.
SMC fiberglass meter boxes are widely used in various power systems and industrial fields for installing smart meters, energy metering equipment and related wiring and control equipment. They usually have waterproof, dustproof, anti-corrosion and other functions, and can provide good power equipment protection and safe operating environment.

Product features

Corrosion resistance: SMC fiberglass material has excellent corrosion resistance and can resist the erosion of acid, alkali, salt water and other corrosive substances, ensuring the long-term stable operation of the meter box.
Weather resistance: SMC fiberglass material has good weather resistance and can withstand the effects of sunlight, wind, rain, high temperature and other natural environments, ensuring the stability and durability of the meter box when used outdoors.
Insulation: SMC fiberglass material has good insulation properties and can effectively isolate the current inside and outside the electrical equipment, providing good safety protection.
Lightweight and high-strength: Compared with traditional metal meter boxes, SMC fiberglass meter boxes are lightweight and high-strength, making them easy to handle, install and maintain.
Waterproof and dustproof: SMC fiberglass meter box has good waterproof and dustproof performance, which can effectively prevent external water, dust and other impurities from entering the inside of the box, and protect the electrical equipment in the meter box from damage.
High temperature resistance: SMC fiberglass material has good high temperature resistance, can maintain stability and functionality in high temperature environments, and will not be deformed or damaged due to temperature changes.
Good appearance: SMC fiberglass meter box has a smooth and beautiful appearance, its color can be customized according to needs, and it can blend well into various environments.

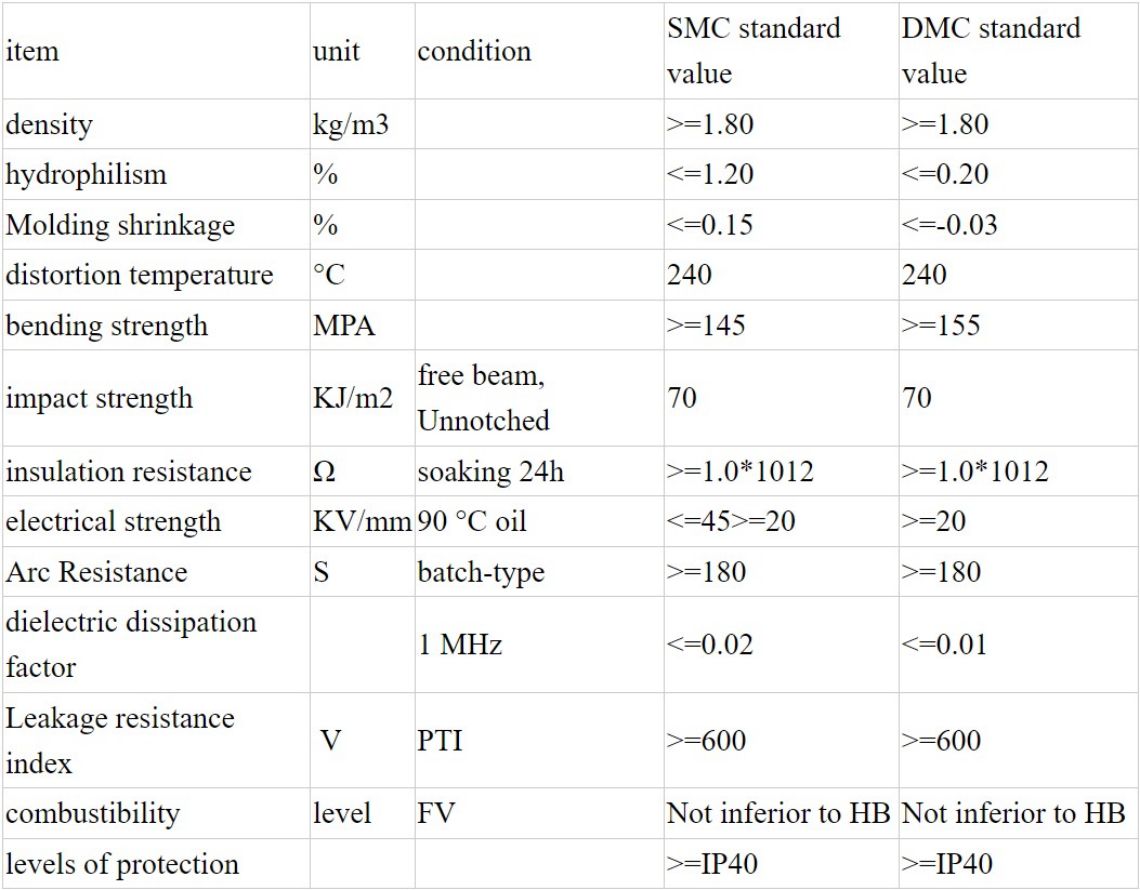

Product parameters

The main technical parameters of Electric Energy Meter Box
1.Main busbar rated current:225A-10A
2.Main busbar rated short time withstand current:30KWA
3.Insulation resistance:No less than 20Ω
4.Nominal insulation voltage:800V
5.Electrical strength:When applied voltage of 50hz2000v for one miniter,there should not be a phenomenon of flash-over and breakdown of lightning.
6.Acid-proof alkaline:dribble 1ml acid-base solution of concentration 3 percent onto the surface of the box body,clean away an hour later,there is no crack and no delamination.
7.Anti press properties:When put 100kg heavy on the any position of the box,after 3 miniters,there is no cracking and damage
8.Voltage and frequency:220V/380V,50Hz
9.Levels of protection:43
10.Flame retardancy:FV-0degree,flame temperature is no less than 650°C.

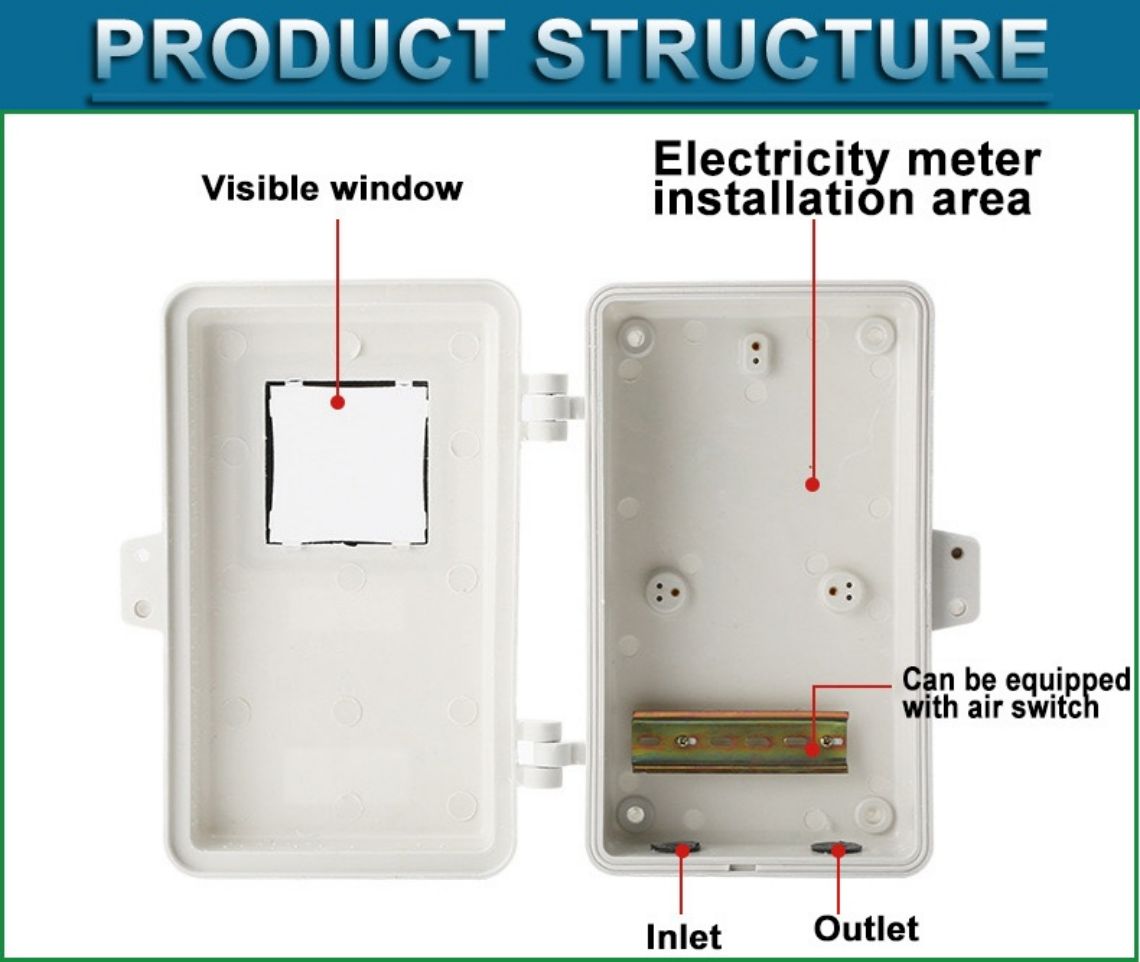

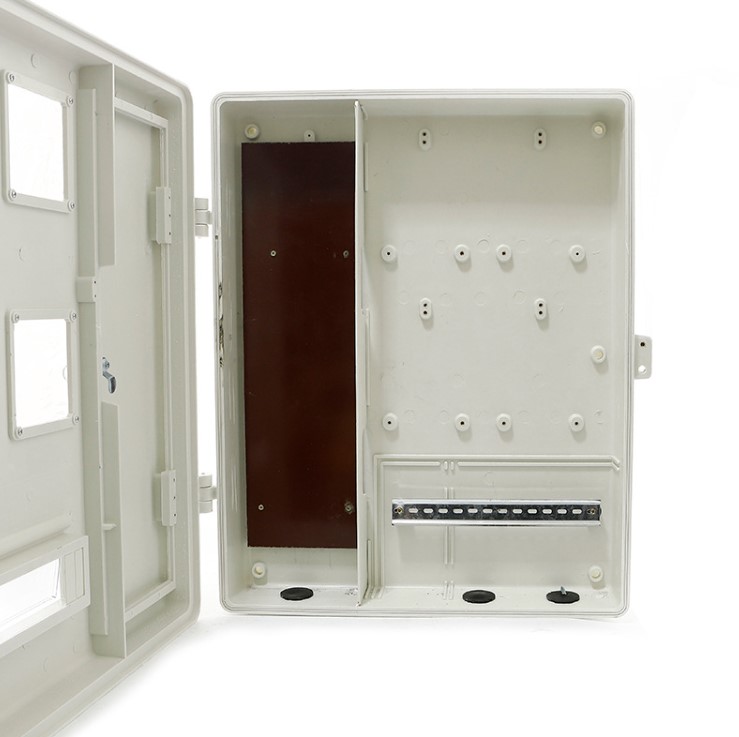

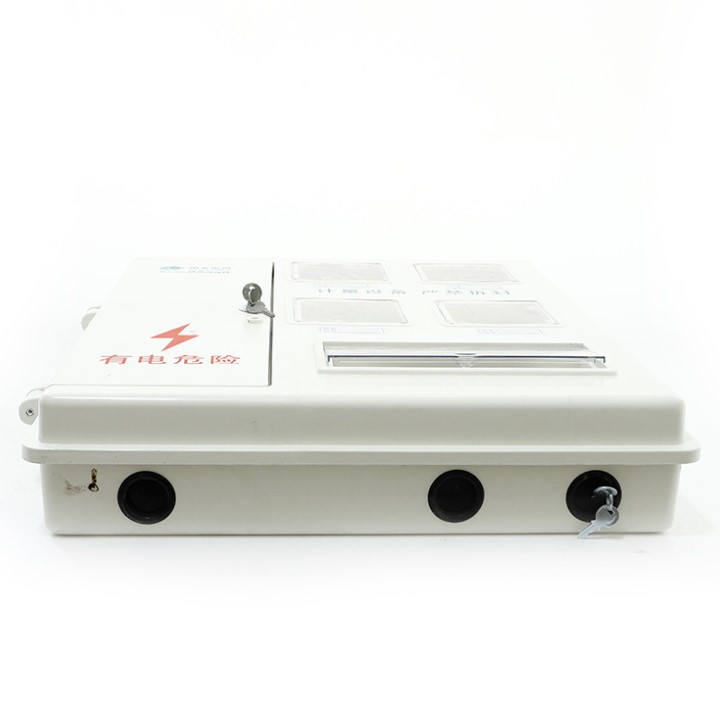

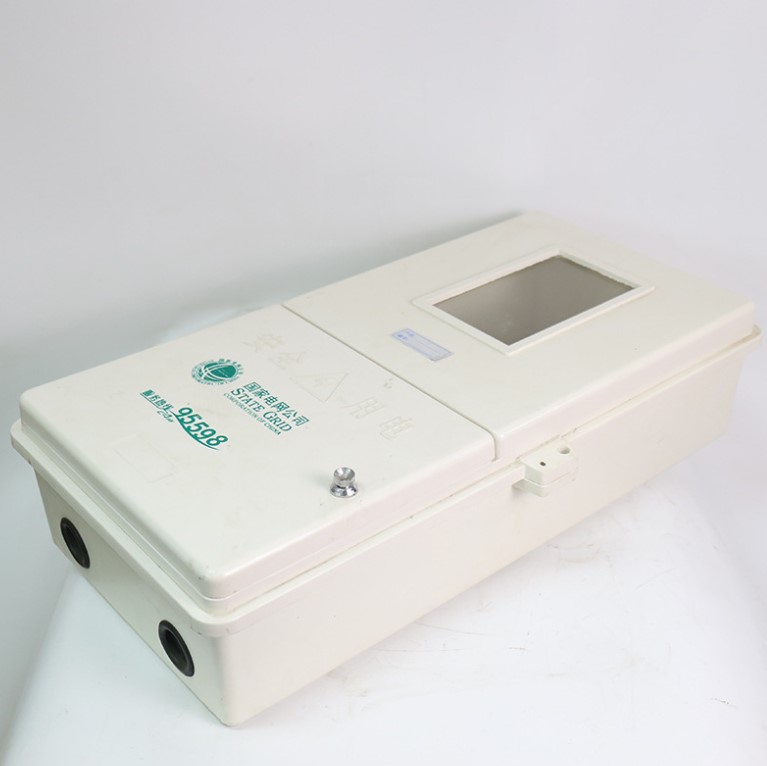

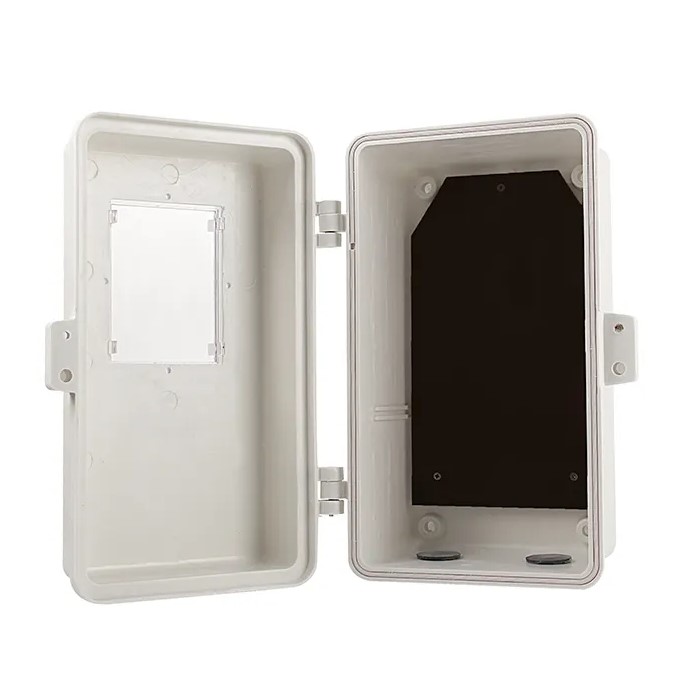

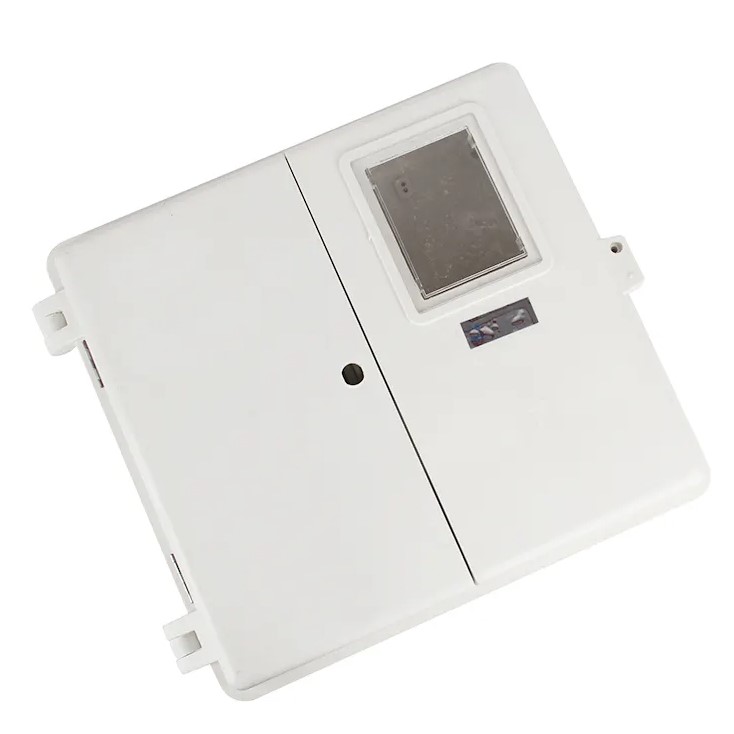

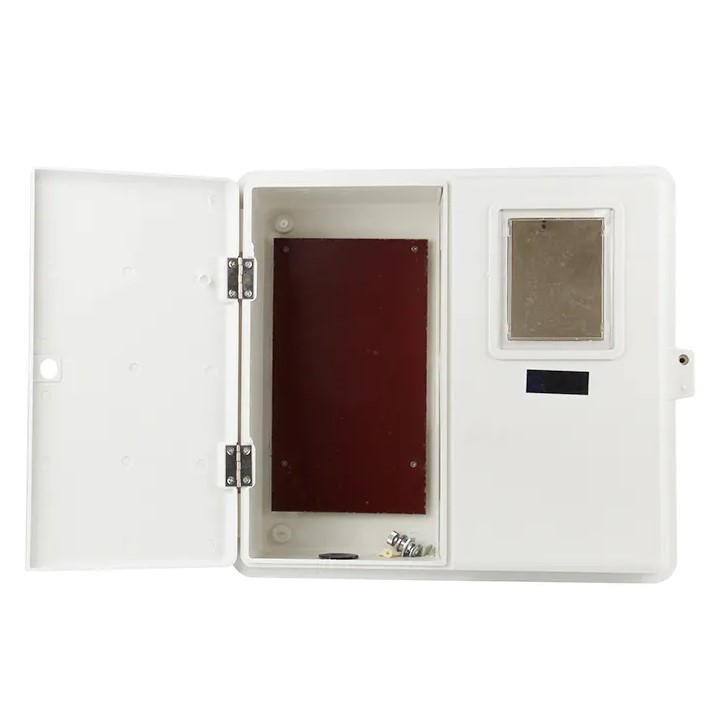

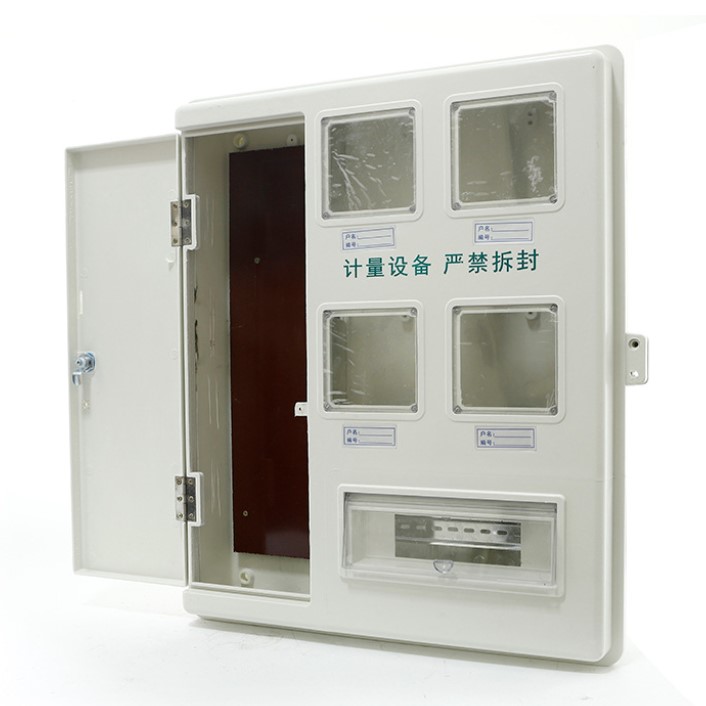

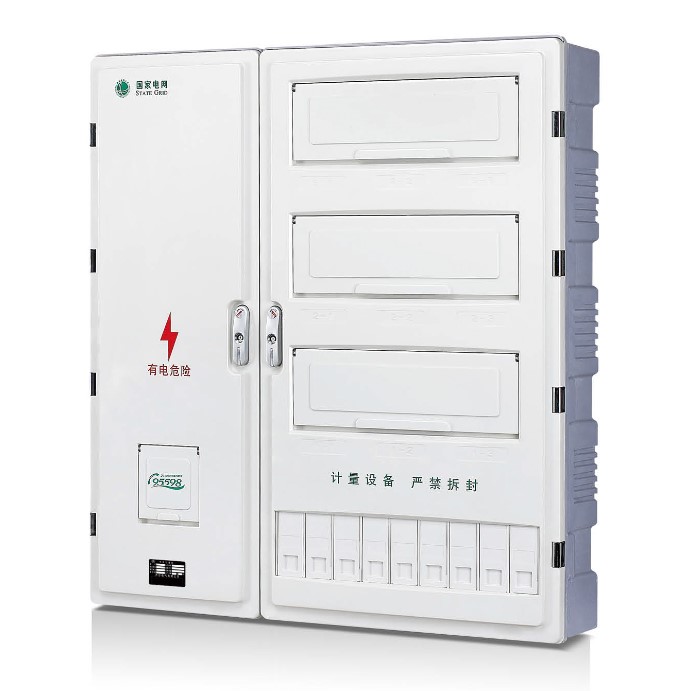

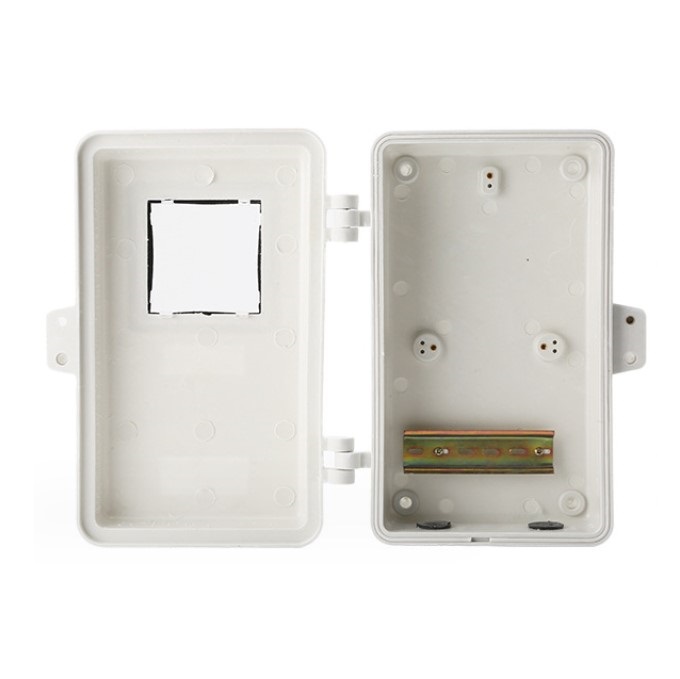

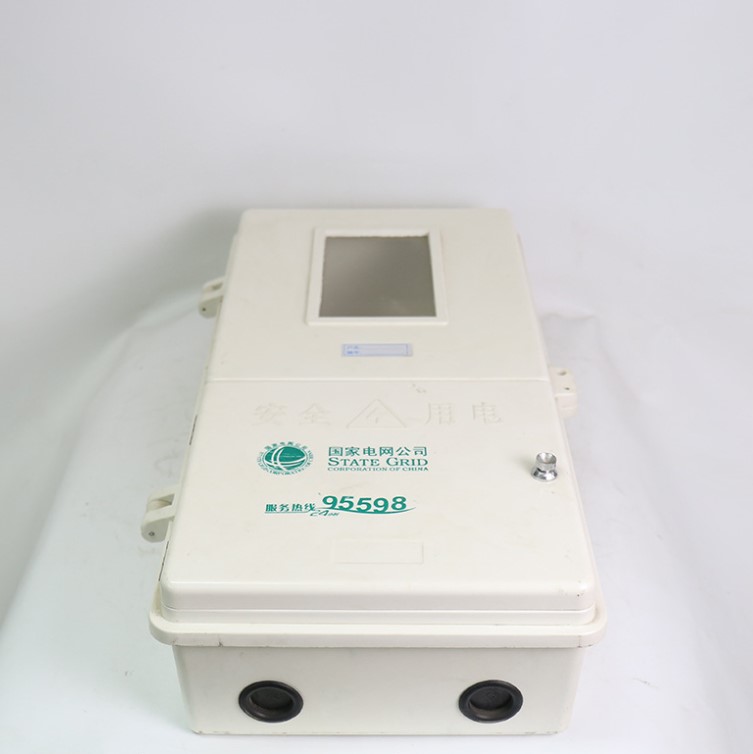

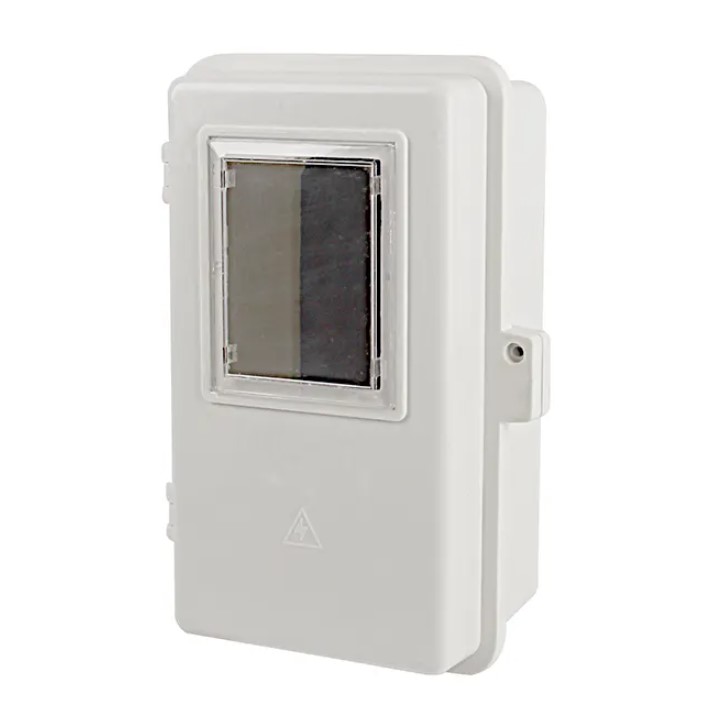

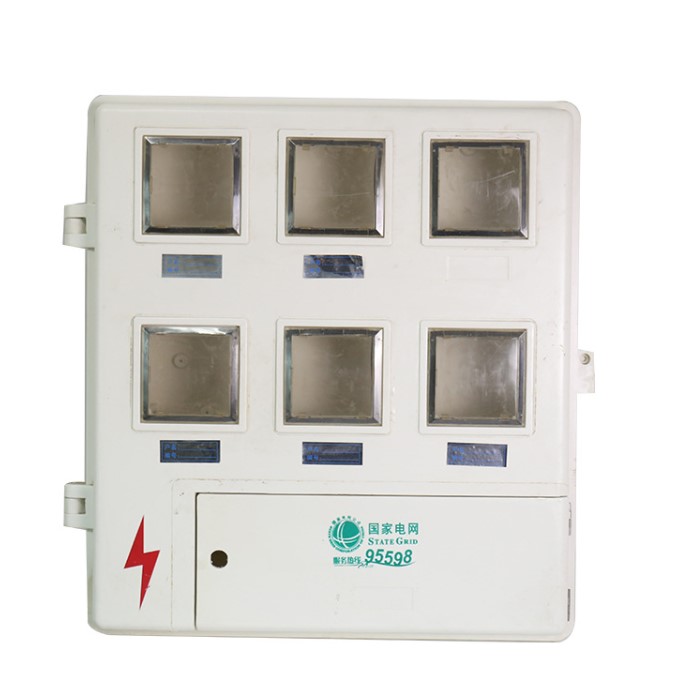

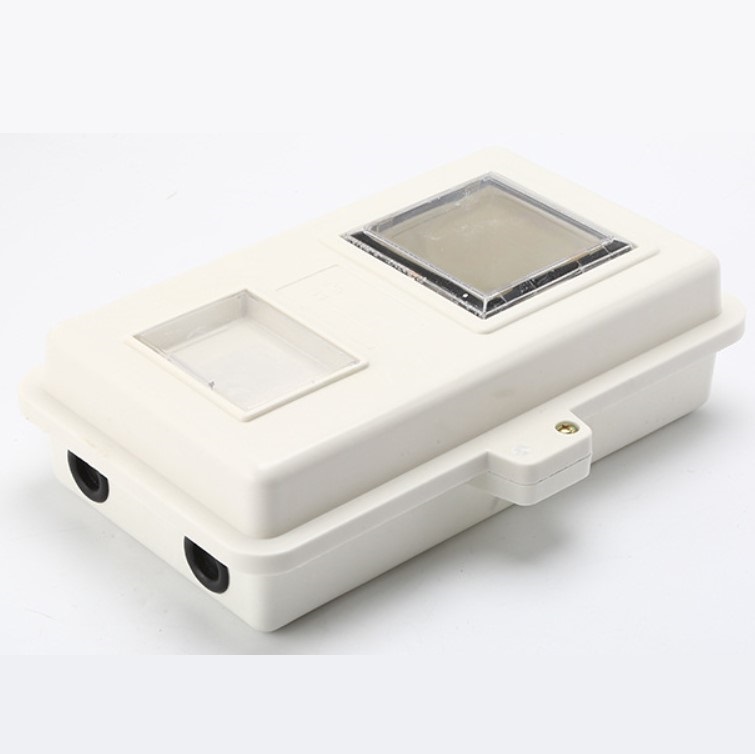

Product Details

Workshop

Certificate

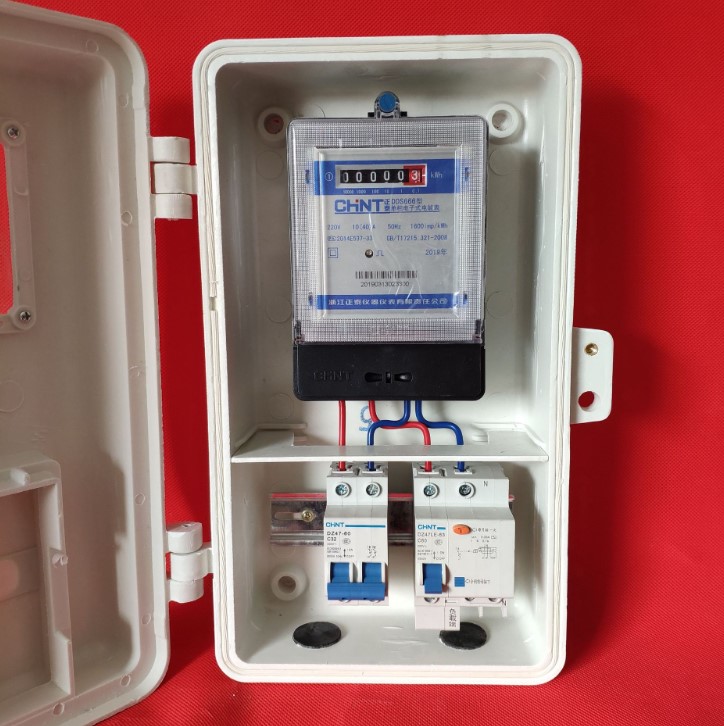

Product application cases

Transportation and packaging
