Product Description

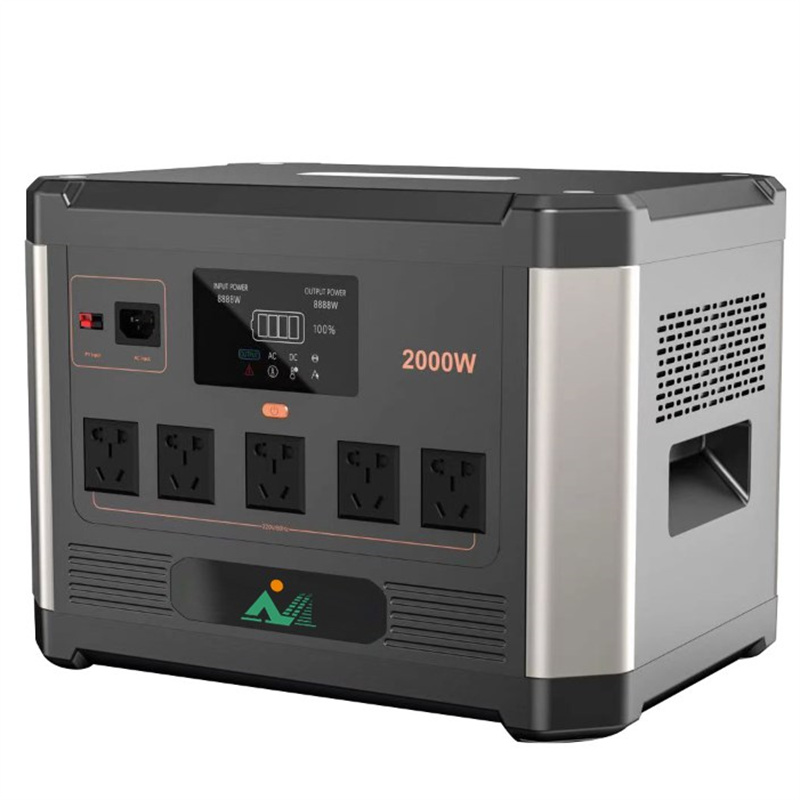

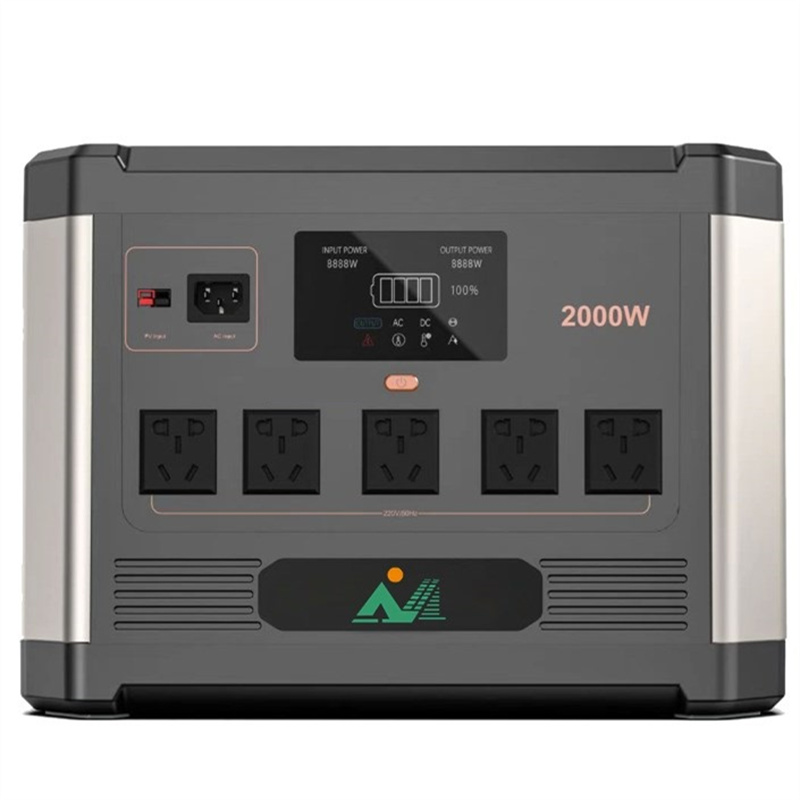

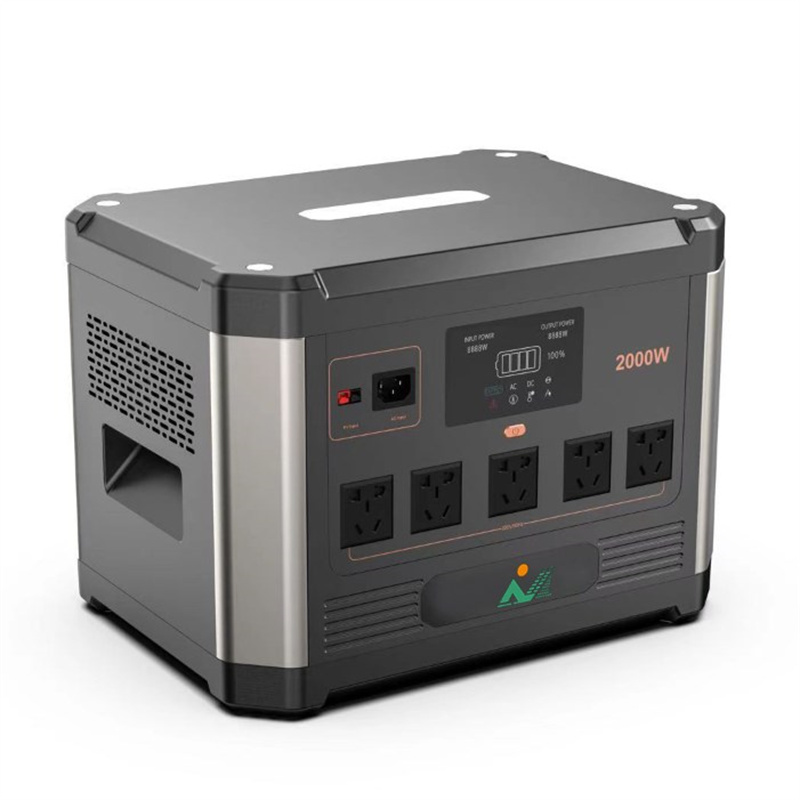

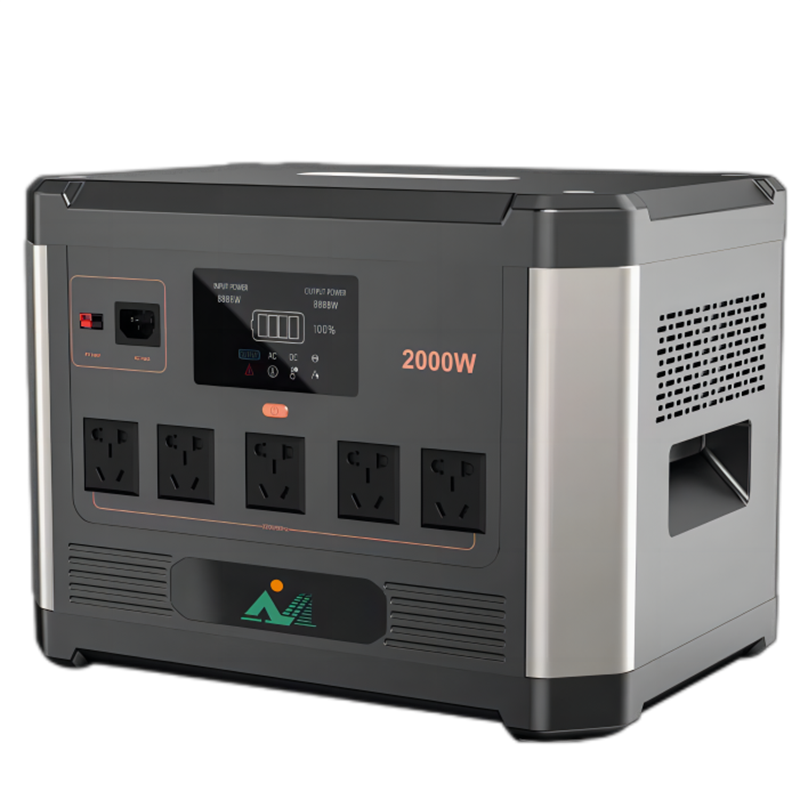

DK2000 portable power station is a device intergrating several electrical items. It is with high quality ternary lithium battery cells, excellent battery management system (BMS), efficient inverter circuit for DC/AC transfer. It is suitable for indoor and outdoor, and it is used as backup power for house, office, camping and so on. You can charge it with mains power or solar power, adaptor is not required. When you are charging it with mains power, it will be 98% full in 4.5H.

It can provide constant 220V/2000W AC output , also it provide 5V, 12V,15V,20V DC output and 15W wireless output. It is widely used in different situations, the life span is long and it is very with advanced power management system.

Application area

1)Backup power for outdoor, can connect phone, i-pad, laptop and so on.

2)Used as a power for outdoor photography, outdoor riding, TV recording and lighting.

3)Used as an emergency power for mine ,oil exploration and so on.

4)Used as an Emergency power for field maintenance in telecommunication department，and emergency supply.

5)Emergency power for medical equipment and micro emergency facility.

6)Working temperature -10℃~45℃，Storage ambient temperature -20℃~60℃，Environment humidity 60±20%RH, No condensation, Altitude≤2000M，Fan cooling.

Features

1)High capacity, high power, Built-in lithium battery，Long standby time、High conversion efficiency ,Portable.

2)Pure sine wave output，adapt to various loads. Resistive load with 100% rated power, capacitive load with 65% rated power, inductive load with 60% rated power, etc.

3)UPS emergency transfer, transfer time is less than 20ms；

4)Large screen display function；

5)Built-in high-power fast charger；

6)Protection：Input under voltage, output overvoltage, output under voltage, overload, short circuit, over temperature, over current.

Electrical Performance Index

①Button

Item	Control method	Remark
POWER	Press 3 seconds	Main switch control display /DC/USB-A/Type-C/AC/Button to turn ON and OFF
AC	Press 1 seconds	AC ON/OFF Switch AC Output,Turn on AC Light on
DC	Press 1 seconds	DC ON/OFF Switch DC Output,Turn on DC Light on
LED	Press 1 seconds	3 modes (Bright, Low、SOS),press and turn on Bright light,Press again For low light,Press again for SOS mode,Press again to turn off.
USB	Press 1 seconds	USB ON/OFF Switch USB and Type-C Output,Turn on USB Light on

②Inverter (Pure sine wave)

Item	Specification
Input under voltage alarm	48V ± 0.3V
Input under voltage protection	40.0V ± 0.3V
No-load current consumption	≤0.3A
Output voltage	100V-120Vac /200-240Vac
Frequency	50HZ/60Hz±1Hz
Rated output power	2000W
Peak power	4000W (2S)
Overload allowed (60S)	1.1 times rated output power
Over temperature protection	≥85℃
Work efficiency	≥85%
Output overload protection	1.1 times load (Shut down, resume normal operation after restart)
Short Circuit Protection	Shut down, resume normal operation after restart
Inverter fan starts	Temperature control,When the internal temperature rises above 40°C,The fan starts running
Power factor	0.9 (Battery voltage 40V-58.4V)

③Built-in AC charger

Item	Specification
AC charging mode	Three-stage charging(constant current, constant voltage, floating charge)
AC Charge Input Voltage	100-240V
Maximum charging current	15A
Maximum charging power	800W
Maximum charging voltage	58.4V
Mains charging protection	Short circuit, over current, shutdown after battery is fully charged
Charging efficiency	≥95%

④Solar input (Anderson port)

Item	MIN	Standard	MAX	Remarks
Input voltage range	12V	/	50V	The product can be charged stably within this voltage range
Maximum charging current	/	10A	/	The charging current is within 10A, battery is charged constantly，The power is≥500W
Maximum charging voltage	/	58.4V	/
maximum charging power	/	500W	/	charging conversion efficiency≥85%
Input reverse polarity protection	/	Support	/	When it is reversed，System cannot work
Input overvoltage protection	/	Support	/	When it is short circuit，System cannot work
Support MPPT function	/	Support	/

⑤Plate parameter

NO.	Item		Default	Tolerance	Remark
1	Over charge forsingle cell	Overcharge protection voltage	3700mV	±25mV
	Over charge forsingle cell	Overcharge protection delay	1.0S	±0.5S
	Overcharge protection removementfor single cell	Overcharge protection removement voltage	3400mV	±25mV
	Overcharge protection removementfor single cell	Overcharge protection removement delay	1.0S	±0.5S
2	Over dischargefor single cell	Over discharge protection voltage	2500mV	±25mV
	Over dischargefor single cell	Over discharge protection delay	1.0S	±0.5S
	Over discharge protection removement forsingle cell	Over discharge protection removement voltage	2800mV	±25mV
	Over discharge protection removement forsingle cell	Over discharge protection removement delay	1.0S	±0.5S
3	Over charge forwhole unit	Overcharge protection voltage	59.20V	±300mV
	Over charge forwhole unit	Overcharge protection delay	1.0S	±0.5S
	Overcharge protection removement for whole unit	Overcharge protection removement voltage	54.40V	±300mV
	Overcharge protection removement for whole unit	Overcharge protection removement delay	2.0S	±0.5S
4	Over dischargefor whole unit	Over discharge protection voltage	40.00V	±300mV
	Over dischargefor whole unit	Over discharge protection delay	1.0S	±0.5S
	Over discharge protection removement forwhole unit	Over discharge protection removement voltage	44.80V	±300mV
	Over discharge protection removement forwhole unit	Over discharge protection removement delay	2.0S	±0.5S
5	Over discharge protection	Overcharge protection voltage	20A	± 5%
	Over discharge protection	Overcharge protection delay	2S	±0.5S
	Overcharge protection removement	Automatic removement	60s	± 5S
	Overcharge protection removement	Removement by discharge	Discharge current>0.38A
6	Over discharging current 1 protection	Over discharging1 protection current	70A	± 5%
	Over discharging current 1 protection	Over discharging1 protection delay	2S	±0.5S
	Discharging current 1 protection removement	Remove load	Remove load, it will disappear
	Discharging current 1 protection removement	Remove charging	Charging current > 0.38 A
7	Discharging current2 protection	Over discharging2 protection current	150A	± 50A
	Discharging current2 protection	Over discharging2 protection delay	200mS	± 100mS
	Discharging current 2 protection removement	Remove load	Remove load, it will disappear
	Discharging current 2 protection removement	Remove charging	Charging current > 0.38A
8	Short circuit protection	Short circuit protection current	≥400A	± 50A
		Short circuit protection delay	320μS	±200uS
		Short circuit protection removement	Remove load, it will disappear
9	Equalization	Equalization of voltage start	3350mV	±25mV
		Voltage gap when start	30mV	± 10mV
		Static equalization	start	/
10	Temperature protection for cell	High temperature protection while charging	60℃	±4℃
		High temperature protection recovery while charging	55℃	±4℃
		Low temperature protection while charging	-10℃	±4℃
		Low temperature protection recovery while charging	－5℃	±4℃
		High temperature protection while discharging	65℃	±4℃
		High temperature protection recovery while discharging	60℃	±4℃
		Low temperature protection while discharging	-20℃	±4℃
		Low temperature protection recovery while discharging	-15℃	±4℃
11	Power lose	Power lose voltage	≤2.40V	±25mV	Meet three conditions at same time
		Power lose delay	10min	± 1min
		Charge and discharging current	≤2.0A	± 5%
12	High temperature protection for MOS	MOS protection temperature	85℃	± 3℃
		MOS recovery temperature	75℃	± 3℃
		MOS high temperature delay	5S	± 1.0S
13	environmental temperature protection	High temperature protection	70℃	± 3℃
		High temperature recovery	65℃	± 3℃
		Low temperature protection	-25℃	± 3℃
		Low temperature recovery	-20℃	± 3℃
14	Full charge protection	Total voltage	≥ 55.20V	± 300mV	Meet three conditions at same time
		Charging current	≤ 1.0A	± 10%
		Full charge delay	10S	±2.0S
15	Power default	Low power alarm	SOC ＜30%	± 10%
		Full power	30AH	/
		Designed power	30AH	/
16	Current consumption	Self -consumptioncurrent at work	≤ 10mA
		Self-consumptioncurrent while asleep	≤ 500μA	enter ：NO charge-discharge , NO communication 10S
		Self-consumptioncurrent while asleep	≤ 500μA	activation ：1.charge-discharfe 2.communication
		Low-consumptionmode current	≤ 30μA	enter ：refer to【current consumption mode】
		Low-consumptionmode current	≤ 30μA	activation ：charging voltage
17		Decrease after one cycle	0.02%	One cycle of capacity decrease at 25℃
	Full capacity decreasing	Self-consumption current rate	1%	Self-consumption rate at sleep mode every month
	System setting	Percentage of charge and discharge	90%	The capacity of charge and discharge reaches 90% of the total power, it is one cycle
		SOC 0% voltage	2.60V	percentage 0% equal to single cell voltage
18	Plate size	lengthWidthHeight ( mm )	130 ( ±0.5 ) *80 ( ±0.5 ) ＜211

Product characteristics

Item	MIN	Standard	MAX	Remarks
High temperature protection for discharge	56℃	60℃	65℃	When the cell temperature is higher than this value, the output is turned off
High temperature release of discharge	48℃	50℃	52℃	After high temperature protection, the output needs to be restored after the temperature drops to the recovery value
Operating temperature	-10℃	/	45℃	Ambient temperature during normal operation
Storage humidity	45%	/	85%	When not in operation, within the storage humidity range, suitable for storage
Storage temperature	-20℃	/	60℃	When not in operation, within the storage temperature range, suitable for storage
Working humidity	10%	/	90%	Ambient humidity during normal operation
Fan on power	/	≥100W	/	When input/output power≥100W，Fan starts
Fan off power	/	≤100W	/	When the total output power≤100W, Fan off
Lighting LED Power	/	3W	/	1 LED light board, bright white light
Power saving mode power consumption	/	/	250uA
Total system power consumption in standby	/	/	15W	Total power consumption when the system has no output
Total output power	/	2000W	2200W	Total power≥2300W, DC output is priority
Charging and discharging	/	support	/	In charging state，there are AC output and DC output
Off to charge	/	support	/	In the off state, charging can boot the screen display

1. Charging

1)You can connect the mains power to charge the product. Also you can connect the solar panel to charge the product. The LCD display panel will blink incrementally from left to right. When all the 10 steps are green and the battery percentage is 100%, it means that the product is fully charged.

2) During the charging, the charging voltage should be within the input voltage range, otherwise it will cause overvoltage protection or mains trip.

2. Frequency conversion

When the AC is off, hold down the "POWER" button and the AC button for 3 seconds to automatically switch to 50Hz or 60Hz. The normal factory setting is 60Hz for the Japanese/American and 50Hz for the Chinese/European.

3. Product standby and shutdown

1) When all output DC/AC/USB/ wireless charging is off, the display will go into hibernation mode for 50 seconds, and automatically shuts down within 1 minute, or press "POWER" to shut down.

2) If the output AC/DC/USB/ wireless charger are all turned on or one of them is turned on, the display will enter hibernation mode within 50 seconds, and the display will enter the steady state and will not automatically shut down.

Click the "POWER" button or the indicator button to turn on, and press the "POWER" button for 3 seconds to turn off.

Notice

1.Please pay attention to the input and output voltage range when using this product. Make sure the input voltage and the power should be within the range of the energy storage power supply. The life span will be prolonged if you use it properly.

2. The connection cables must be matched, because different load cables correspond to different equipment. Therefore, please use the original connection cable so the performance of the device can be guaranteed.

3. The energy storage power supply needs to be stored in a dry environment. Proper storage method can prolong the service life of the energy storage power supply.

4.If you do not use the product for a long time, please charge and discharge the product once every two months to improve the service life of the product

5.Do not put the device under too High or too low ambient temperature, it will shorten the service life of electronic products and make damage of the product shell.

6. Do not use corrosive chemical solvent to clean the product. Surface stains can be cleaned by cotton swab with some anhydrous alcohol

7. Please handle the product gently while using, do not make it fall down or disassemble it violently

8. There is high voltage in the product, so do not disassemble by yourself, lest it may cause safety accident.

9. It is recommended that the device should be fully charged for the first time to avoid inconvenience caused by low power. After the device is fully charged, the fan will continue to work for 5-10 minutes after the charging power cable is removed for standby heat dissipation (the specific time may vary with the scene temperature)

10. When the fan is working, prevent dust particles or foreign matters from being inhaled into the device. Otherwise, the device may be damaged.

11. After the discharge is terminated, the fan continues to work to lower the temperature of the device to a proper temperature for about 30 minutes (the time may vary with the scene temperature). When the current exceeds 15A or the temperature of the device is too high, the automatic power-off protection is triggered.

12. During the charging and discharging process, connect the device to the charging and discharging device properly before starting the charging and discharging device; otherwise, sparks may occur, which is a normal phenomenon

13. After discharging, please allow the product to stand for 30 minutes before charging to increase the life of the product's battery.
