Cable manufacturer 1.5-35mm2 1000V 1500V pv cable 6mm2 cable for solar panel
Product description

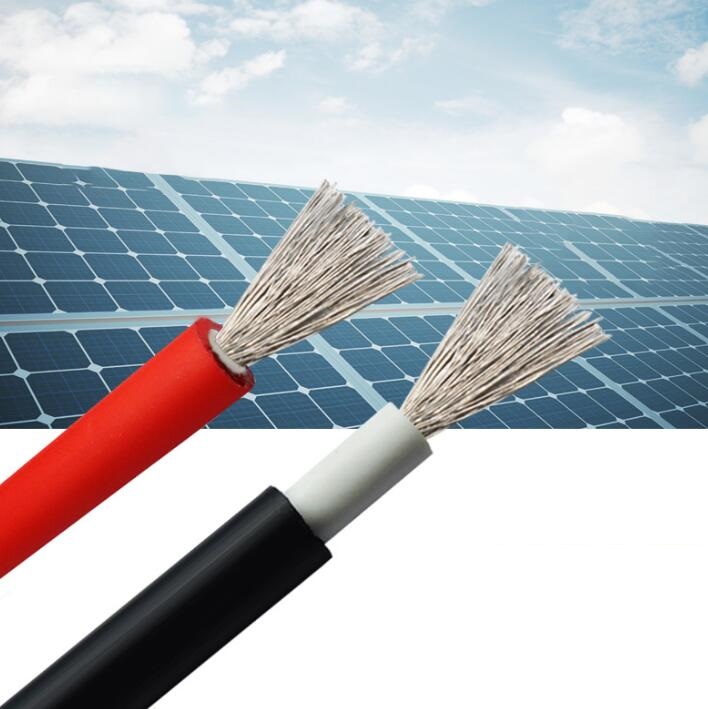

Solar PV DC cable is a specially designed cable used to connect the DC circuit between solar PV panels and inverters. It efficiently transmits DC power generated in solar photovoltaic systems.
Solar photovoltaic DC cables are usually made of conductive materials such as copper or aluminum to ensure good electrical conductivity and current transmission capability. It has been specially treated, such as flame retardant, weather resistance, anti-UV and anti-oxidation, etc., to improve its service life and safety performance.

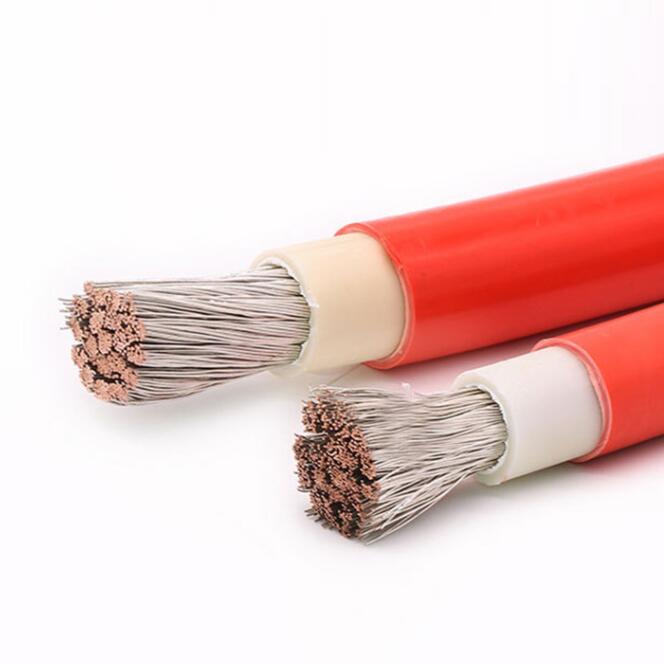

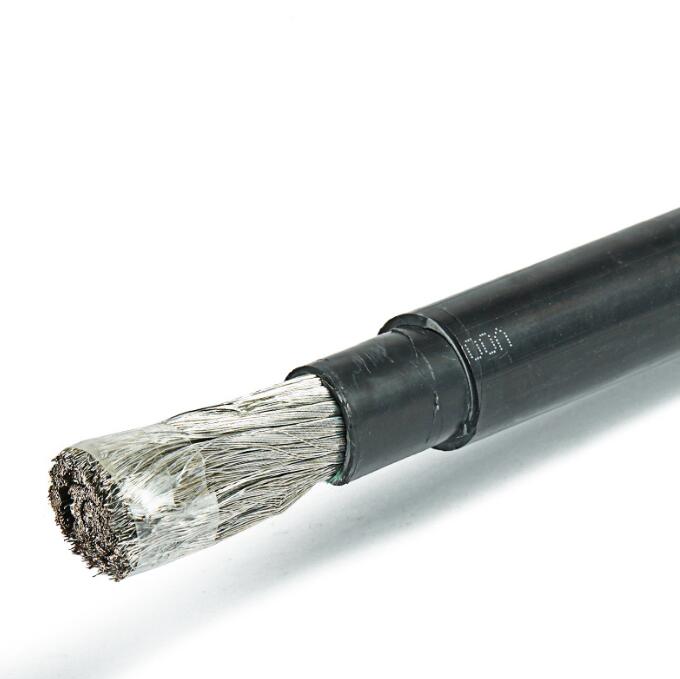

Such cables generally have two main parts: the conductors and the insulation. Wire is the main part of electrical energy transmission, and it usually consists of multiple strands of thin wire to increase conductivity and flexibility. Insulation is the outer protective layer that wraps around wires to isolate current and prevent leakage of electrical energy. In addition, some cables may include an outer shield to reduce interference and reduce electromagnetic emissions.
Solar photovoltaic DC cables have certain standards and specifications to ensure their safe and reliable operation. For example, the International Electrotechnical Commission (IEC) has published a series of standards for solar photovoltaic power systems, including requirements and test methods for DC cables.
In a word, solar photovoltaic DC cable is a kind of cable specially designed for solar photovoltaic system, which has good electrical conductivity, weather resistance and insulation performance. It plays a key role in photovoltaic systems, ensuring efficient transmission and conversion of solar energy.
Product features
Direct current transmission capability: The electric energy generated by solar panels is direct current, which needs to be transmitted through DC cables in photovoltaic systems.
Strong weather resistance: solar photovoltaic DC cables need to be used in outdoor environments, and need to have good weather resistance to resist the influence of natural environments such as sunlight, rain, and temperature.
Good insulation performance: Photovoltaic DC cables need to have good insulation performance to ensure that no current leakage or short circuit occurs during power transmission.
Large current carrying capacity: Solar panels generate large currents, so photovoltaic DC cables need to be able to carry large currents to ensure the safety and stability of power transmission.
Product parameters

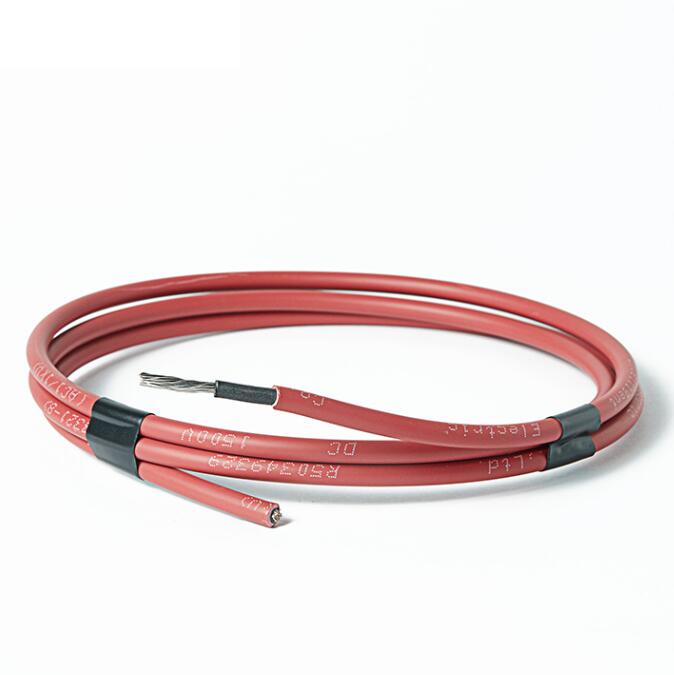

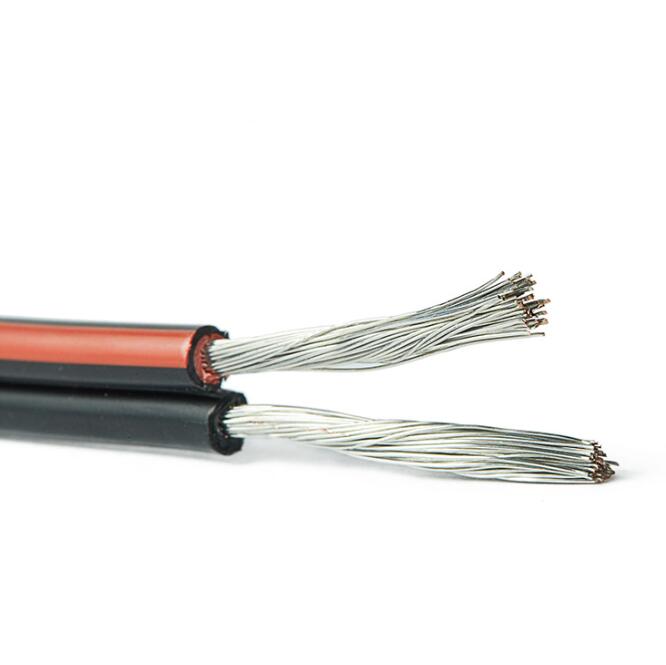

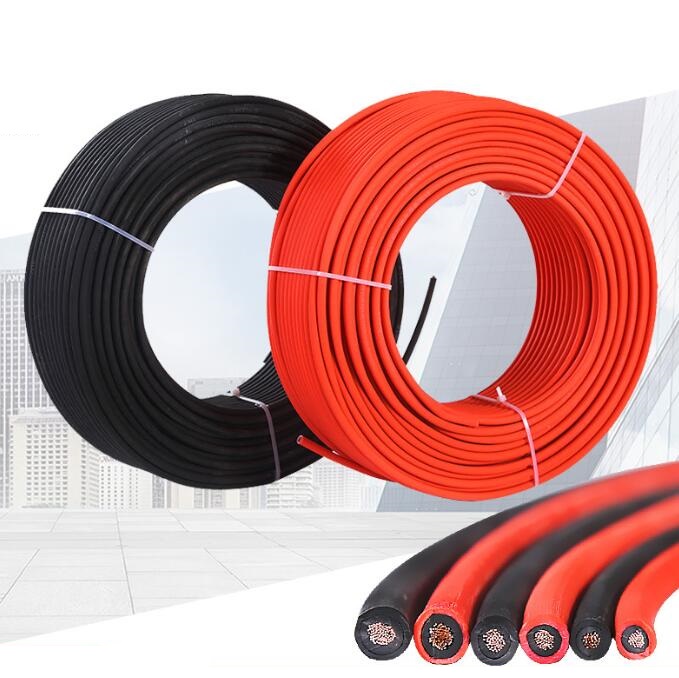

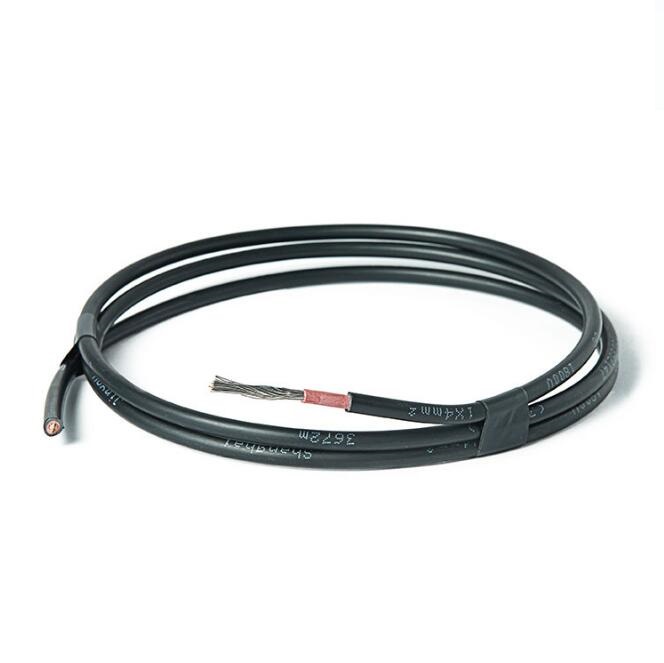

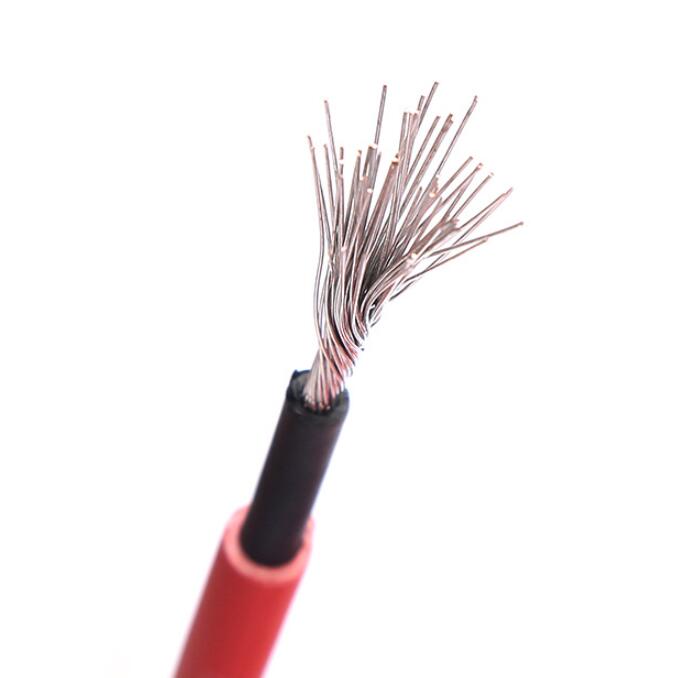

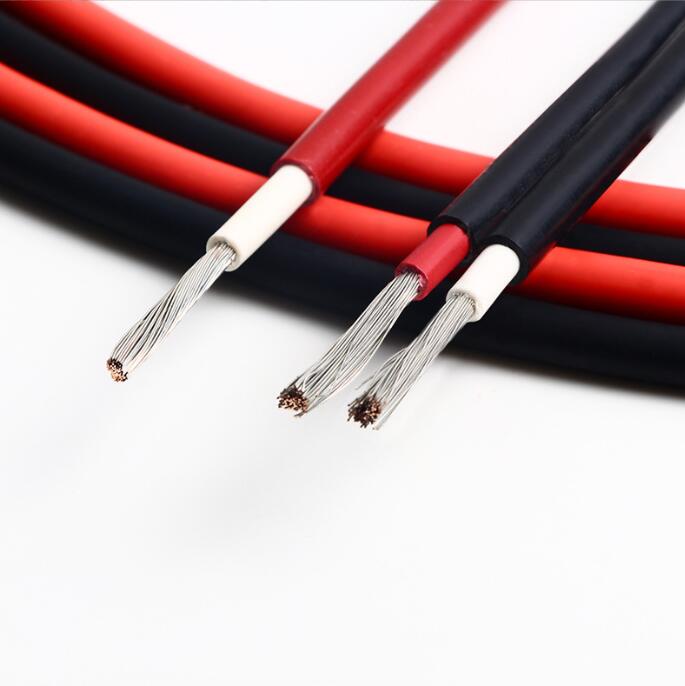

Product Details
Workshop
Certificate
Product application cases

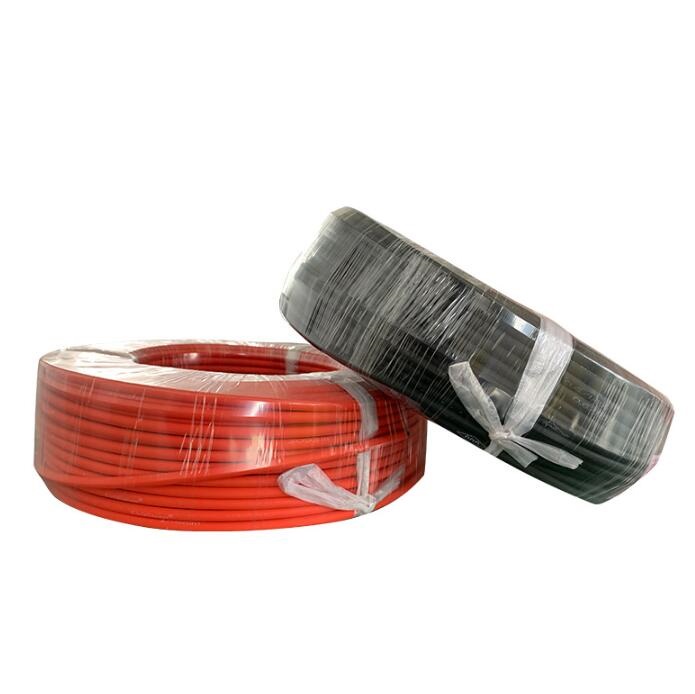

Transportation and packaging
FAQ
Q: What is a solar PV DC cable?
A: Solar PV DC cables are cables used to connect solar PV modules and inverters. It mainly carries the DC signal in the solar photovoltaic system.
Q: What are the characteristics of solar photovoltaic DC cables?
A: Solar photovoltaic DC cables usually have weather resistance, high temperature resistance, low temperature resistance and corrosion resistance. At the same time, they should also have good electrical conductivity and insulation properties to ensure the stable operation and safety performance of the system.
Q: What are the specifications and dimensions of solar PV DC cables?

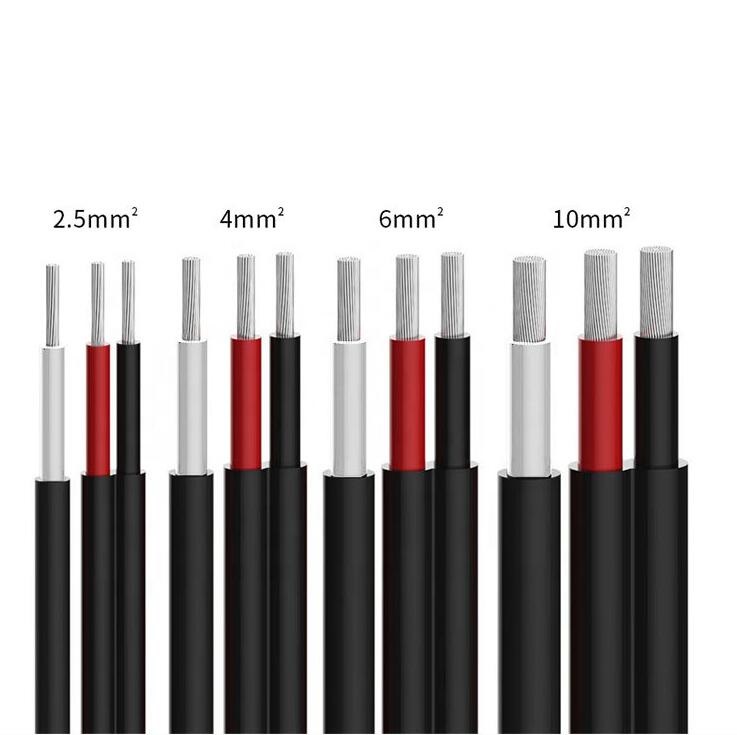

A: The specifications and dimensions of solar photovoltaic DC cables will vary according to the power and current requirements of the system. Common specifications are 2.5 mm², 4 mm² and 6 mm². In addition, the length of the cable is also adjusted according to the installation location and wiring requirements.
Q: What should be paid attention to when installing solar photovoltaic DC cables?
A: When installing solar photovoltaic DC cables, you need to pay attention to the following points:
Make sure that the cables have sufficient weather resistance and UV resistance to deal with the impact of the outdoor environment.
Make sure the cables are properly grounded for extra safety.
Choose appropriate cable accessories, such as joints and insulating sleeves, to ensure reliable connection and waterproof performance.
Fix and protect the cable according to the actual situation to prevent the cable from being damaged by external force.
Q: How to choose a suitable solar photovoltaic DC cable?
A: To choose a suitable solar photovoltaic DC cable, you need to consider factors such as system power, rated current, and environmental requirements. It is recommended to contact a professional solar system supplier or cable company to choose according to actual needs.
